ExOnn ELITE

1–3 kVA Online UPS (Tower Type)

Phase

Single Phase

Battery

Internal

0.9

Power

Features

Explore The Product

4 b 3

Reliable power protection using true online double-conversion technology.

Reliable Online Protection

True online topology ensures zero transfer time and clean power output.

Compact & Efficient Design

High power density allows installation in limited spaces.

Smart Monitoring & Control

LCD display and communication ports enable easy system management.

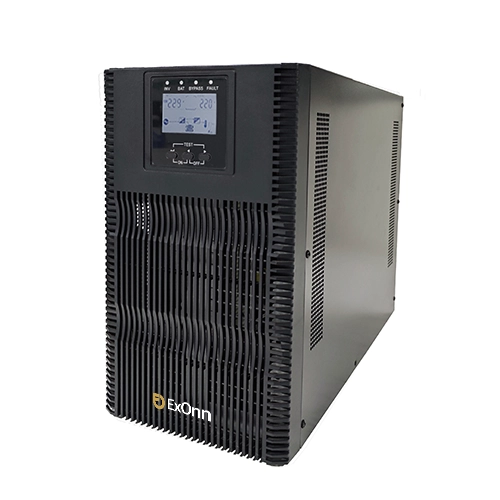

The ExOnn ELITE Series 1–3 kVA Tower UPS is engineered for environments where space efficiency, power stability, and reliability are critical. Featuring full digital control and a high input power factor, this UPS ensures continuous, pure sine-wave output even under unstable grid conditions.

Its advanced monitoring, generator compatibility, and comprehensive protection features make it a dependable choice for IT systems, offices, laboratories, and telecom applications.

Models

True Online Double-Conversion Technology

Compact Tower Design with High Power Density

Wide Input Voltage Range (110–300 Vac)

High Input Power Factor (0.99 with PFC)

Intelligent Battery Charging & Management

Generator Compatible Operation

ECO Mode for Energy Efficiency

Cold Start Function

Intelligent Fan Speed Control

Multiple Communication Interfaces

Telecom & networking equipment

Small server rooms

Industrial control systems

Offices & business IT systems

Medical & laboratory devices

c 1

c 3

c 5

c 2

c 6

c 8

c 4

c 1

c 3

c 5

c 2

c 6

c 8

c 4

Tailored Made

Power & Precision

True Online Double-Conversion

Complete isolation from power disturbances and ensures uninterrupted operation.

Intelligent Battery Management

Optimized charging extends battery life and improves backup reliability.

Wide Input Voltage Range

Handles unstable grid conditions without switching to battery frequently.

Generator Compatible Operation

Ensures smooth performance when powered by generators.

High Input Power Factor

Reduces energy loss and improves overall system efficiency.

Comprehensive Protection System

Protects against overload, short circuit, overheat, battery faults, and fan failures.

Detailed

Specifications

UPS System

Technology: True Online Double-Conversion
Phase: Single Phase (1:1)
Capacity: 1 kVA / 2 kVA / 3 kVA
Power Factor: 0.9

Input

Input Voltage Range: 110 – 300 Vac
Input Frequency: 40 – 70 Hz
Input Power Factor: ≥ 0.99

Output

Output Voltage: 208 / 220 / 230 / 240 Vac (Selectable)
Voltage Regulation: ±1%
Waveform: Pure Sine Wave
Transfer Time: Zero

Battery

Battery Type: Sealed Lead Acid (Internal)
Charging Current: Up to 12A (Long-Run Units)
Cold Start: Supported

Communication & Control

Standard Ports: RS232, USB, EPO
Optional: SNMP Card, Dry Contact
Display: LCD Interface

Environmental

Operating Temperature: 0°C to 40°C
Humidity: 0–95% (Non-condensing)
