20–120 kVA ExOnn RTX Modular Online UPS – ExOnn Power

ExOnn RTX Series

20–120 kVA Modular Online UPS

Phase

3/3, 3/1, 1/1 Configurable

Battery

External / Modular Battery

Scalability

Up to 120 kVA

Features

Explore The Product

7 p 3

Easily expand power capacity by adding modules without downtime.

Future-Ready Power

Designed to scale with growing business demands.

Maximum Uptime Assurance

Redundancy and modular design minimize downtime.

Efficient & Intelligent

Advanced controls deliver reliable and energy-efficient performance.

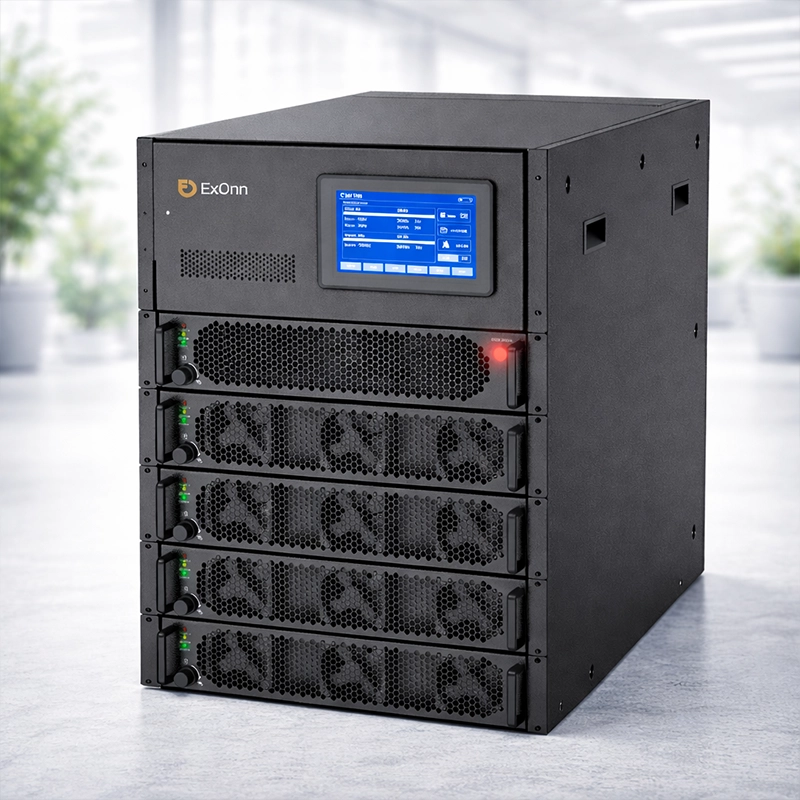

The ExOnn RTX Series (20–120 kVA) is a next-generation modular online double-conversion UPS engineered for flexibility, scalability, and maximum uptime. Its modular design allows power capacity to grow as demand increases without system shutdown or redesign.

Featuring advanced digital control, high-performance inverter technology, and centralized bypass architecture, the RTX Series ensures superior power quality and long-term operational efficiency.

True Online Double-Conversion Technology

Modular Power Design (20 kW / 30 kW Modules)

High Efficiency up to 96%

N+X Redundancy for High Availability

Centralized Bypass Architecture

Advanced Digital Control & Monitoring

7-inch Color Touchscreen Interface

Flexible System Configuration (3/3, 3/1, 1/1)

Low Harmonic Distortion

Smart Battery Management

Enterprise & cloud data centers

Hospitals & healthcare facilities

Industrial & mission-critical systems

Telecom & IT infrastructure

Banking & financial institutions

c 1

c 3

c 5

c 2

c 6

c 8

c 4

c 1

c 3

c 5

c 2

c 6

c 8

c 4

Tailored Made

Power & Precision

True Modular Architecture

Allows capacity expansion and maintenance without interrupting power delivery.

N+X Redundancy

Provides built-in fault tolerance for mission-critical environments.

High Efficiency up to 96%

Reduces energy consumption and lowers total cost of ownership.

Flexible System Configuration

Supports multiple phase configurations without derating.

Advanced Digital Control

Ensures precise voltage regulation and fast response to load changes.

Intelligent Battery Management

Optimizes battery charging and monitoring for extended battery life.

Detailed

Specifications

UPS System

Technology: True Online Double-Conversion
Capacity Range: 20 kVA – 120 kVA
Module Size: 20 kW / 30 kW (2U)
Efficiency: Up to 96%

Input

Input Voltage Range: 152 – 478 Vac
Input Frequency: 40 – 70 Hz

Output

Waveform: Pure Sine Wave
Voltage Regulation: ±1%
Power Quality: Low THDi

Battery

Battery Voltage: ±180 Vdc to ±300 Vdc (Adjustable)
Battery Type: External Battery Bank

Communication & Control

Display: 7-inch Color Touchscreen
Communication: USB, RS232, SNMP, Dry Contact

Environmental

Operating Temperature: 0°C to 40°C
Installation: Rack Modular System
